What is a Crane Barge?

Deck Crane Barge


As we mentioned before on our blog post Types of Barges (which contains very useful information) it was explained superficially. Now you can find detailed information about Crane Barges or Crane Vessels.

As the name suggests, a crane ship is that type of sea-going vessel that has a crane attached to it. A crane vessel is of great relevance when it comes to the facet of creating structures in the high seas. It is just because of such vessels that numerous important buildings are accomplished in trickier parts of the seas and oceans.

The duty, as well as the activity of a crane ship, is similar to the cranes that are used in daily construction activities. The only difference is the reality that the crane barge is utilized in the seas whilst the other on the ground.

The making of the crane vessel has actually changed in the 800-hundred years of its origin. The initial crane ship was manufactured in the 14th century and ever since the technology has actually assisted generations and generations of individuals. In today’s times, along with the basic ship that has a single crane attached to it, ‘Semi-Submersible Vessels’ and the ‘Sheerlegs.’ are the common types of the crane barges.

typical crane vessel - crane barge Credits: MarkFromSavannah/wikipedia.com


Typical Crane Vessels: These types of marine cranes are more typically recognized around. They were the ones that were first presented in the 14th century, as pointed out over. These cranes can be made use of to transport as well as lift around 2,500 tons. Additionally, one more significant feature is that it is self-propelled, which implies, the crane can be transferred to the location where the thing to be lifted is located.

Semi Submersible Crane Barge
Credits: SSCV Thialf – Numulunj pilgae/wikipedia.com

Semi-Submersible Crane Barges: These types of cranes provide a lot of security to the devices that is being lugged. As the name goes, semi-submersible cranes submerge partly right into the water to give the weight put on top of them the equilibrium required. This equilibrium offered ensures that the item carried does not topple right into the water. The weight lifting capability of such semi-submersible cranes differs from one naval vessel to an additional. Nonetheless, the heaviest restriction that such semi-submersibles can carry includes around 15,000 tonnes.

Floating Sheerleg Barge
Credits: Taklift-4, Alf van Beem /wikipedia.org

Sheerlegs: These sorts of cranes are stationary. In other words, they do not capable of revolving. The weight carrying ability of such cranes varies from around 50 tonnes to around 8000 tonnes.

Deck Barge - Crane Barge

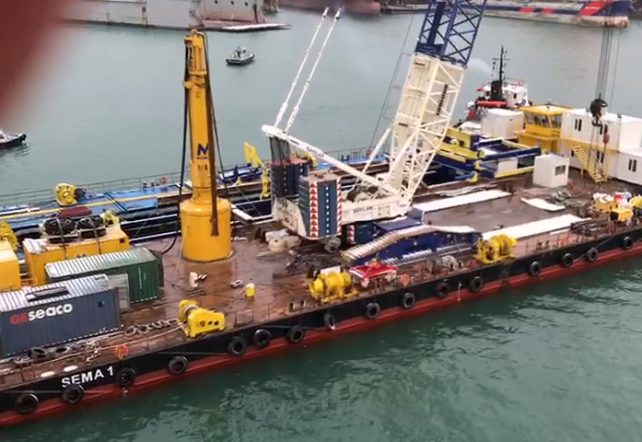

Crane Piling Barge – 1915 Canakkale

Alternative, Crane Deck Barge : Deck Barges or Spud and Jack-Up barges, crawler cranes can be embarked on these kind of barges. So at the total there is a functional revolving crane the lifting capacity depends on the barge dimenions and the embarked crawler crane. This is the economical alternative at the most marine construction projects. You can find Our Deck Barge for Sale to use in such solution.

You can find Sema-1 (belongs to our company), crane deck barge for sale, designed and constructed specially and carefully.
